Captura 2 – Interlocking & Permisos

Resumen

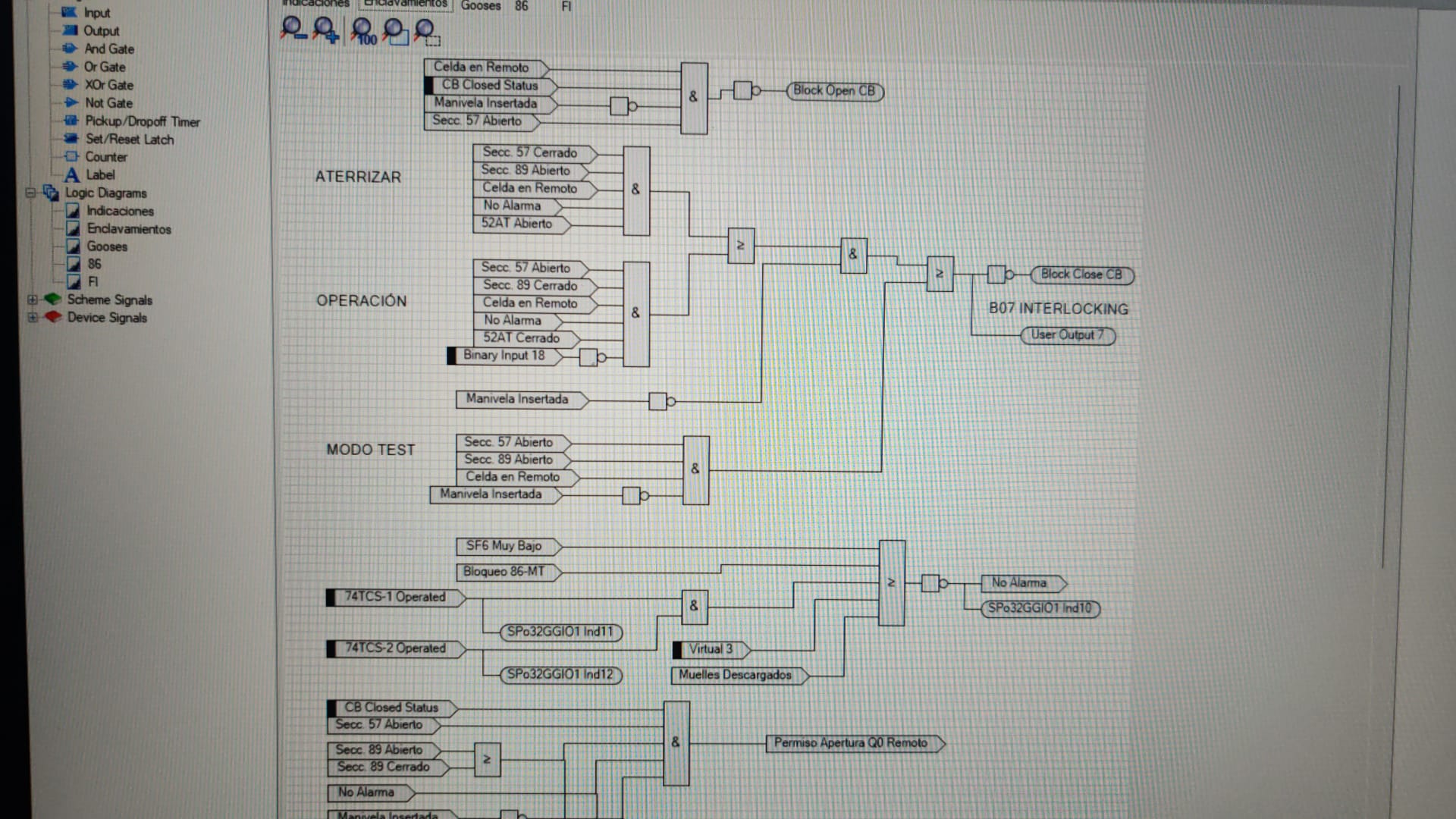

Segunda captura centrada en enclavamientos de apertura/cierre (Block Open/Close CB), permisos remotos y evaluación de alarmas SF6 y bloqueos 86. Incluye comparadores de mayoría (≥), grupos funcionales ATERRIZAR, OPERACIÓN y MODO TEST.

Grupos Funcionales

Nodos (Entradas & Lógica)

Salidas / Indicadores

Lógica y Conexiones (Edges)

JSON Preliminar

{
    "nodes": [
      { "id": "secc_57_cerrado", "type": "physical_input", "label": "Secc. 57 Cerrado" },
      { "id": "secc_57_abierto", "type": "physical_input", "label": "Secc. 57 Abierto" },
      { "id": "secc_89_cerrado", "type": "physical_input", "label": "Secc. 89 Cerrado" },
      { "id": "secc_89_abierto", "type": "physical_input", "label": "Secc. 89 Abierto" },
      { "id": "celda_en_remoto", "type": "physical_input", "label": "Celda en Remoto" },
      { "id": "manivela_insertada", "type": "physical_input", "label": "Manivela Insertada" },
      { "id": "no_alarma", "type": "internal_variable", "label": "No Alarma" },
      { "id": "muelles_descargados", "type": "physical_input", "label": "Muelles Descargados" },
      { "id": "sf6_muy_bajo", "type": "physical_input", "label": "SF6 Muy Bajo" },
      { "id": "bloqueo_86_mt", "type": "physical_input", "label": "Bloqueo 86-MT" },
      { "id": "74tcs_1_operated", "type": "physical_input", "label": "74TCS-1 Operated" },
      { "id": "74tcs_2_operated", "type": "physical_input", "label": "74TCS-2 Operated" },
      { "id": "cb_closed_status", "type": "physical_input", "label": "CB Closed Status" },
      { "id": "binary_input_18", "type": "physical_input", "label": "Binary Input 18" },
      { "id": "virtual_3", "type": "internal_variable", "label": "Virtual 3" },
      { "id": "and_aterrizar_group", "type": "logical_function", "label": "AND Aterrizar Group" },
      { "id": "and_operacion_group", "type": "logical_function", "label": "AND Operación Group" },
      { "id": "and_modo_test", "type": "logical_function", "label": "AND Modo Test" },
      { "id": "and_alarm_filter", "type": "logical_function", "label": "AND Alarm Filter" },
      { "id": "majority_close_stage1", "type": "logical_function", "label": "Comparator ≥ Stage1", "parameters": { "threshold": 2 } },
      { "id": "and_final_close", "type": "logical_function", "label": "AND Final Close" },
      { "id": "majority_close_stage2", "type": "logical_function", "label": "Comparator ≥ Stage2", "parameters": { "threshold": 2 } },
      { "id": "and_perm_apertura_remote", "type": "logical_function", "label": "AND Permiso Apertura Remoto" },
      { "id": "majority_alarm_eval", "type": "logical_function", "label": "Comparator ≥ Alarm Eval", "parameters": { "threshold": 2 } },
      { "id": "block_open_cb", "type": "output", "label": "Block Open CB" },
      { "id": "block_close_cb", "type": "output", "label": "Block Close CB" },
      { "id": "b07_interlocking", "type": "output", "label": "B07 INTERLOCKING" },
      { "id": "user_output", "type": "output", "label": "User Output" },
      { "id": "permiso_apertura_q0_remoto", "type": "output", "label": "Permiso Apertura Q0 Remoto" },
      { "id": "sp032ggi01_ind10", "type": "output", "label": "SP032GGI01 Ind10" },
      { "id": "sp032ggi01_ind11", "type": "output", "label": "SP032GGI01 Ind11" },
      { "id": "sp032ggi01_ind12", "type": "output", "label": "SP032GGI01 Ind12" }
    ],
    "edges": [
      { "source": "celda_en_remoto", "target": "block_open_cb" },
      { "source": "cb_closed_status", "target": "block_open_cb" },
      { "source": "manivela_insertada", "target": "block_open_cb" },
      { "source": "secc_57_abierto", "target": "block_open_cb" },
      { "source": "secc_57_cerrado", "target": "and_aterrizar_group" },
      { "source": "secc_89_abierto", "target": "and_aterrizar_group" },
      { "source": "celda_en_remoto", "target": "and_aterrizar_group" },
      { "source": "no_alarma", "target": "and_aterrizar_group" },
      { "source": "52at_cerrado", "target": "and_aterrizar_group" },
      { "source": "secc_57_abierto", "target": "and_operacion_group" },
      { "source": "secc_89_cerrado", "target": "and_operacion_group" },
      { "source": "celda_en_remoto", "target": "and_operacion_group" },
      { "source": "no_alarma", "target": "and_operacion_group" },
      { "source": "52at_cerrado", "target": "and_operacion_group" },
      { "source": "binary_input_18", "target": "and_operacion_group" },
      { "source": "secc_57_abierto", "target": "and_modo_test" },
      { "source": "secc_89_abierto", "target": "and_modo_test" },
      { "source": "celda_en_remoto", "target": "and_modo_test" },
      { "source": "manivela_insertada", "target": "and_modo_test" },
      { "source": "and_aterrizar_group", "target": "majority_close_stage1" },
      { "source": "and_operacion_group", "target": "majority_close_stage1" },
      { "source": "and_modo_test", "target": "majority_close_stage1" },
      { "source": "majority_close_stage1", "target": "and_final_close" },
      { "source": "virtual_3", "target": "and_final_close" },
      { "source": "manivela_insertada", "target": "and_final_close" },
      { "source": "and_final_close", "target": "majority_close_stage2" },
      { "source": "majority_close_stage2", "target": "block_close_cb" },
      { "source": "block_close_cb", "target": "b07_interlocking" },
      { "source": "block_close_cb", "target": "user_output" },
      { "source": "cb_closed_status", "target": "and_perm_apertura_remote" },
      { "source": "secc_57_abierto", "target": "and_perm_apertura_remote" },
      { "source": "secc_57_cerrado", "target": "and_perm_apertura_remote" },
      { "source": "secc_89_abierto", "target": "and_perm_apertura_remote" },
      { "source": "secc_89_cerrado", "target": "and_perm_apertura_remote" },
      { "source": "celda_en_remoto", "target": "and_perm_apertura_remote" },
      { "source": "manivela_insertada", "target": "and_perm_apertura_remote" },
      { "source": "muelles_descargados", "target": "and_perm_apertura_remote" },
      { "source": "and_perm_apertura_remote", "target": "permiso_apertura_q0_remoto" },
      { "source": "sf6_muy_bajo", "target": "and_alarm_filter" },
      { "source": "bloqueo_86_mt", "target": "and_alarm_filter" },
      { "source": "and_alarm_filter", "target": "majority_alarm_eval" },
      { "source": "no_alarma", "target": "majority_alarm_eval" },
      { "source": "majority_alarm_eval", "target": "sp032ggi01_ind10" },
      { "source": "74tcs_1_operated", "target": "sp032ggi01_ind11" },
      { "source": "74tcs_2_operated", "target": "sp032ggi01_ind12" }
    ],
    "rules": [
      { "id": "BLOCK_OPEN_COND", "expr": "block_open_cb -> (celda_en_remoto && cb_closed_status && manivela_insertada && secc_57_abierto)" },
      { "id": "BLOCK_CLOSE_COND", "expr": "block_close_cb -> (majority_close_stage2 && majority_close_stage1)" },
      { "id": "PERM_APERTURA_REMOTE", "expr": "permiso_apertura_q0_remoto -> (cb_closed_status && celda_en_remoto && manivela_insertada)" },
      { "id": "SF6_ALARM_INHIBIT", "expr": "sf6_muy_bajo -> (!block_close_cb && !permiso_apertura_q0_remoto)" },
      { "id": "86_MT_BLOCK", "expr": "bloqueo_86_mt -> (!block_close_cb)" },
      { "id": "INDICATORS_TCS", "expr": "(sp032ggi01_ind11 -> 74tcs_1_operated) && (sp032ggi01_ind12 -> 74tcs_2_operated)" },
      { "id": "ALARM_OK", "expr": "sp032ggi01_ind10 -> (no_alarma && !sf6_muy_bajo)" },
      { "id": "MAJORITY_CLOSE", "expr": "majority_close_stage2 -> (majority_close_stage1 && and_final_close)" }
    ]
  }

Reglas Derivadas (Pseudo)

// BLOCK_OPEN_COND: block_open_cb == 1 -> celda_en_remoto && cb_closed_status && manivela_insertada && secc_57_abierto
// BLOCK_CLOSE_COND: block_close_cb == 1 -> majority_close_stage2 && majority_close_stage1
// PERM_APERTURA_REMOTE: permiso_apertura_q0_remoto == 1 -> cb_closed_status && celda_en_remoto && manivela_insertada
// SF6_ALARM_INHIBIT: sf6_muy_bajo == 1 -> block_close_cb == 0 && permiso_apertura_q0_remoto == 0
// 86_MT_BLOCK: bloqueo_86_mt == 1 -> block_close_cb == 0
// INDICATORS_TCS: sp032ggi01_ind11 == 1 -> 74tcs_1_operated == 1; sp032ggi01_ind12 == 1 -> 74tcs_2_operated == 1
// ALARM_OK: sp032ggi01_ind10 == 1 -> no_alarma == 1 && sf6_muy_bajo == 0
// MAJORITY_CLOSE: majority_close_stage2 == 1 -> majority_close_stage1 == 1 && and_final_close == 1

Ambigüedades / Validaciones

• "no_alarma" podría ser salida de evaluación más que entrada independiente.
• Comparadores ≥: confirmar umbral real (imagen no muestra número explícito).
• Virtual 3: naturaleza (permiso interno, test flag?).
• 52AT Cerrado aparece como texto; necesita confirmación si es contacto auxiliar breaker.
• Relación entre majority_alarm_eval y indicador Ind10 requiere confirmación de lógica real (puede ser inversa).

Próximos Pasos

1. Confirmar umbrales comparadores.
2. Integrar este JSON en simulador (extender import para múltiples capturas).
3. Agregar motor de mayoría genérico y lógicas de inhibición cruzada.
4. Añadir export consolidado multi-captura.
